The Conspit 300 GT introduces a groundbreaking combination of Conspit’s proprietary technologies, built upon a race-grade carbon fiber lightweight structure. It integrates cutting-edge ergonomics, optimized control layouts, and unique interactive control-display feature, creating a new vision of practical aesthetics for sim racing.
Select Your Quick Release
The Conspit 300 GT includes the Quick Con 50/70mm Quick Release Adapter for easy attachment to the wheel base quick release of your choice. Note: Wheel Side Quick Release* required specific to your wheel base. *Sold Separately.
Customise Your Wheel
Full-color customization, supporting lighting effects feedback control via CONSPIT Link 2.0 for the display screen and/or SimHub for the lighting customisation.
All lights are compatible with SimHub, allowing for comprehensive race and vehicle telemetry indicators.
Connect To Any Wheelbase
All Conspit wheels include a 50:70 Wired Quick Release Adapter with an aviation-grade USB wired connection, providing compatibility with all major 3rd Party 70mm Quick Release systems.
Race-Grade Carbon Fiber Structure
3D True Carbon Fiber Front Panel + High-Strength Aluminum Alloy Main Body in a precision interlocking design
1150g ultra-lightweight and rigid construction offers extremely low rotational inertia and high torsional rigidity, minimizing interference with force feedback details.
3D True Carbon fiber Front Cover
The front housing is crafted from T-300 carbon fiber prepreg, weighing just 43 grams and offering tensile strength up to 16 times that of carbon fiber composite injection molding.
12-layer prepreg lamination structure, utilizing the same Compression Molding Carbon Fiber Process proven in Le Mans-level racing.
Technical Features
- Hybrid structure in 3D molded T-300 carbon fiber and high-strength aerospace aluminum with ultra-lightweight weight of only 1150g.
- T-300 prepreg carbon fiber front cover weighing 43g with 12-layer lamination and Le Mans-grade compression molding process.
- High-strength aluminum alloy rear main body injection molded as one piece and CNC machined for maximum rigidity.
- Proprietary 2.99-inch display with 5 dedicated telemetry dashboards, additional pages coming with future updates.
- Professional lighting system with 56 fully customizable RGB LEDs: 8 button lights, 12 RPM indicator LEDs and 36 knob position light indicators.
- Full integration with SimHub for comprehensive race and vehicle telemetry indicators.
- 8 modular RGB ErgoTouch buttons with 500g actuation force + silicone shock-absorbing pad + clear rebound.

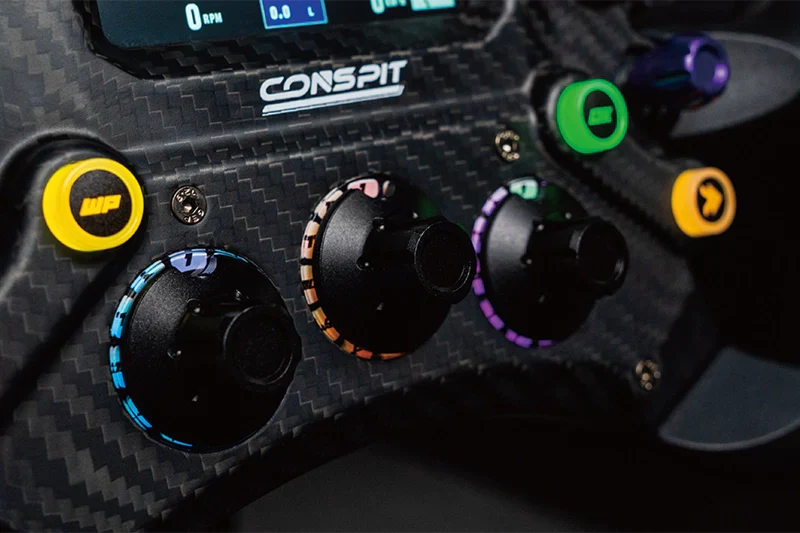

- 2 ThumbClick knobs ergonomically optimized for thumb with triple precision in diameter, resistance and actuation feel.
- 3 dual-mode knobs (+/- and absolute) with encoder remapping function via central knob.
- Adjustable magnetic paddles with three pressure options: 550gf, 660gf and 900gf, tested for 500,000 clicks with pressure deviation <4%.
- Dual-clutch clutch paddles with settings for dual-clutch mode, bite point and independent axis via CONSPIT Link 2.0.
- EnduroGrips handle in high-quality TPU, 3 times more resistant than standard TPE, anti-wear and anti-dirt.
- Anti-fatigue geometry optimized for full grip, dual compatible for 2 or 3 lower finger grip.
- 110 fully customizable controls for the most professional in-game control needs.
- Quick-Con system for universal compatibility with standard 70mm PCD mounting holes and military-grade quick connectors.
TECHNICAL SPECIFICATIONS
- Weight: 1150g (excluding QR)
- Display: 2.99? 800×268 colors
- RGB Buttons: 8 ErgoTouch modules
- Encoders: 4 knobs
- Rotary Switches: 3
- 7-way Joysticks: 2
- Clutch Paddles: 2 modular with Hall sensors
- Gear Paddles: Silent magnetic with Hall sensors
- Connection: PC, direct USB
- Software: CONSPIT LINK 2.0
