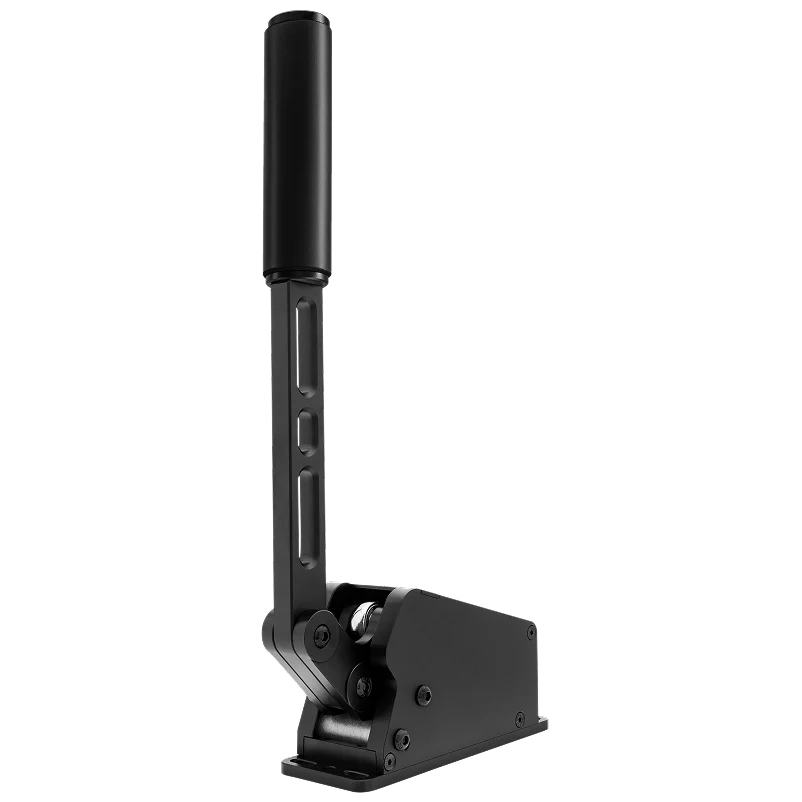

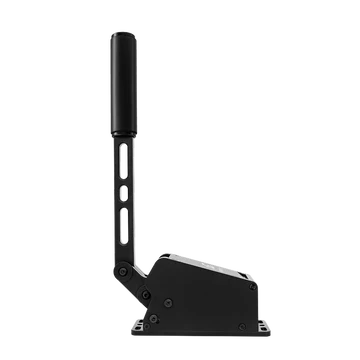

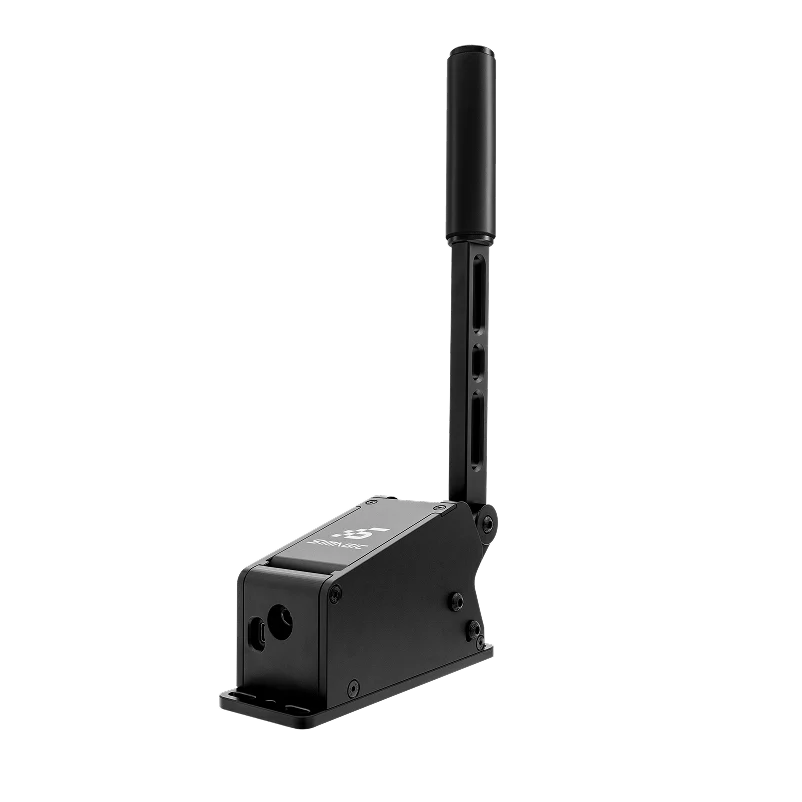

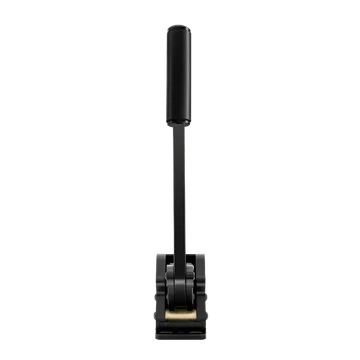

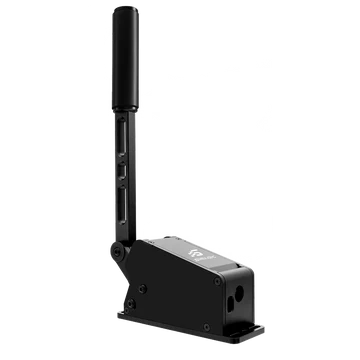

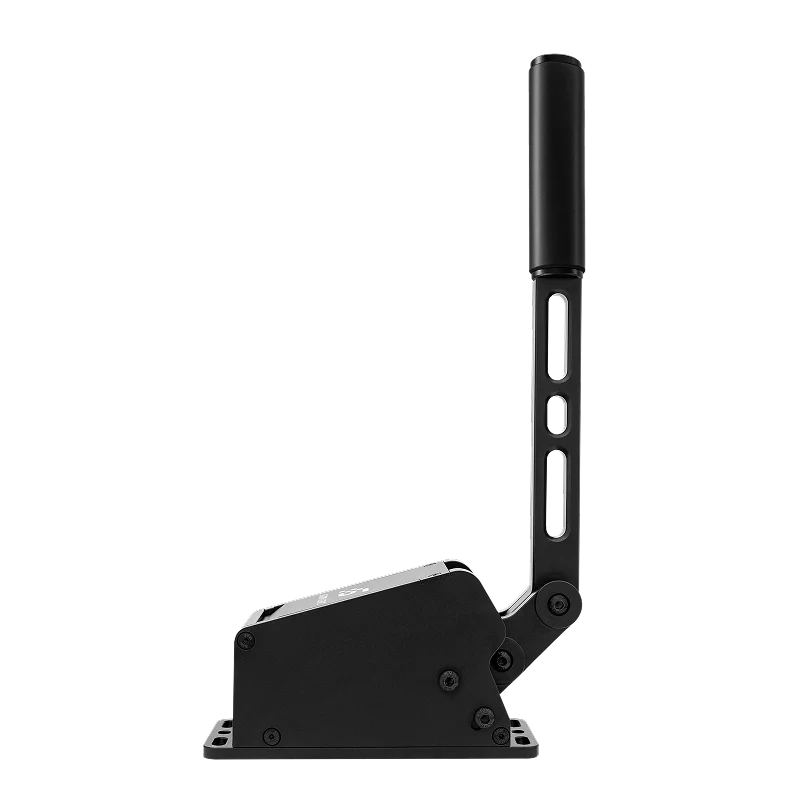

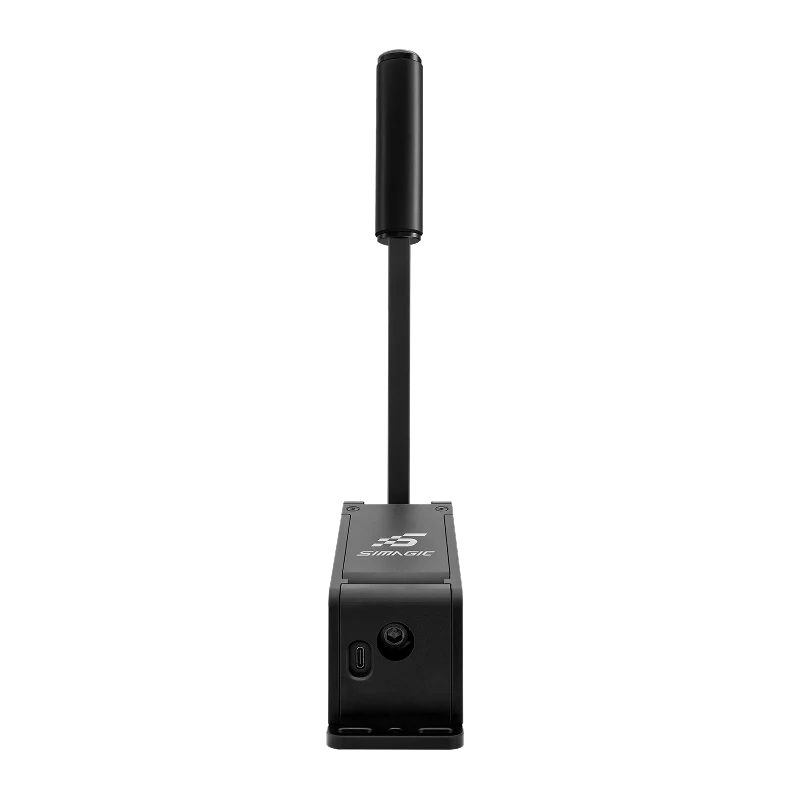

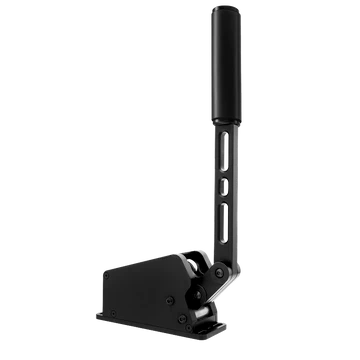

Simagic TB-1 Full-Metal Handbrake – 100 kg Load Cell, Dual-Mode Resistance

The Simagic TB-1 Handbrake is built for sim racers who demand realism, durability, and advanced control in drift, rally, GT, or track setups. Its full-metal CNC-machined aluminium alloy body ensures rock-solid structure under high loads. With a 100 kg high-precision load cell sensor, this handbrake delivers authentic accurate force feedback and responsiveness.

Equipped with a 2-stage resistance system, the TB-1 simulates the feel of a real car handbrake’s increasing resistance, enhanced by adjustable damping and interchangeable rubber compounds to fine-tune resistance, elasticity, and fatigue resistance. The lever is dual-mode: you can quickly switch between horizontal (road car) and vertical (rally / drift) orientation to match your driving style or rig layout.

Designed for versatility, the TB-1 supports multiple mounting options. It comes with M6 bolts, using four threaded holes and six through-holes for secure mounting. Side mounting is possible with an optional L-plate bracket for extra flexibility. The handle is removable (22 mm diameter) to allow customization or replacement.

Its form factor is compact yet robust: dimensions are approximately 188 × 66 × 350 mm (Length × Width × Height), and it weighs about 1.3 kg net. Connectivity is via Type-C USB, compatible with PC and Simagic WheelBase platforms. The package includes the handbrake itself, USB cable, screw kit, installation guide, replaceable elastomer/rubber inserts, and warranty card.

Trak Racer, established since 2008, is honoured to be the global distributor of Simagic, delivering this cutting-edge handbrake along with hardware trusted by eSports racers and simulation professionals. We are also proud partners of the BWT Alpine F1® Team and Airbus Flight Sim, so when you choose the TB-1, you’re choosing simulation gear aligned with elite motorsport and aviation-grade fidelity.

Key Features & Specifications
